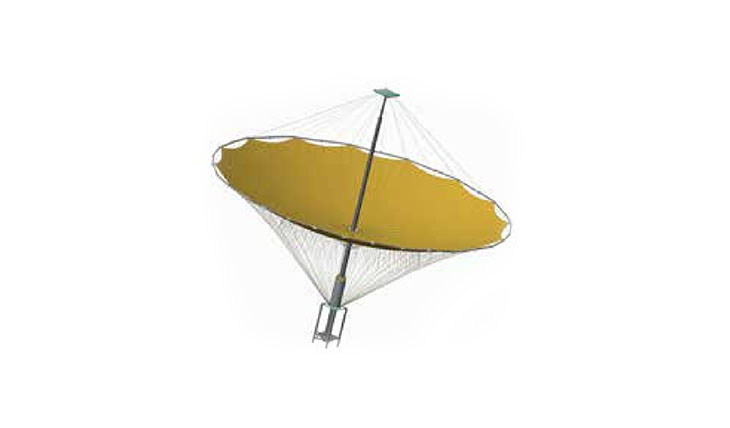

3m Ka-Band High Compaction Ratio Reflector Antenna

Overview

L3Harris’ High Compaction Ratio (HCR) reflector antenna with 1-meter reflector and feed fits in a 2U CubeSat volume or a 5-meter reflector in less than a quarter of an Evolved Expendable Launch Vehicle (EELV) Secondary Payload Adapter (ESPA) class satellite.

The HCR reflector antenna is designed for high-frequency, high-gain antenna performance up to 40 gigahertz. The HCR reflector antenna has a fast production turnaround that supports SmallSat constellation development.

L3Harris applies fabrication and surface-shaping processes that are based on 40 years of reflector heritage to streamline production and minimize development risk for our customers.

Specifications

Component Type
Reflector Antenna
Form Factor
SmallSat
Dry Mass
14.0 kg
Average Power
N/A
Heritage
N/A
Status
In Production
