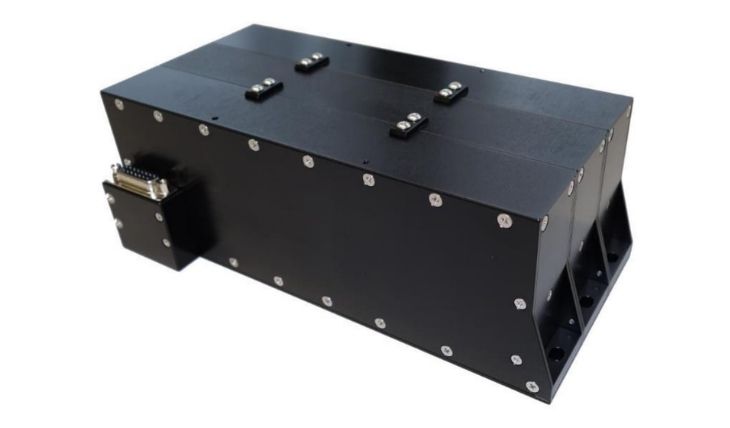

BAT-110
Overview
The BST BAT-110 is a modular battery system for small satellites. It is the successor of the flight proven battery pack that has been developed for the Kent Ridge-1 satellite. It is based on Li-Fe cells. The BST’s Li-Fe battery technology offers 10x more cycle over Li-Io or Li-Po batteries and is significantly less hazardous. The battery block is protected for over charging (non-destructive), tolerant against deep discharge (non-destructive) and offers cell balancing. It is space proven and has a design life of 5 years in LEO. The BAT-110 consists out of 3 strings in parallel each with a nominal capacity of 2.5 Ah. The electrical interface is a 15pin D-SUB female connector.
Specifications:
- Dimensions: 240 x 119 x 87 mm³
- Mass: 3000 g
- Nominal Voltage: 23.1 V
- Capacity: 7.5 Ah
- Storage Temperature: -30°C to +50°C
- Operating Temperature: -20°C to +40°C
- Tested: More than 30k Cycles @ 1C & 10% DoD
- Radiation Test: 30 krad (Co60)
- Design Life: 5 years LEO
- Space Heritage: Yes
Overview
- Name
- BAT-110
- Vendor
- Berlin Space Technologies
- Subsystem
- Power Subsystem
- Component Type
- Primary Battery
- Form Factor
- SmallSat
- Heritage
- Yes
Vendor Details
- Name
- Berlin Space Technologies
- Founded
- 2009
- Summary
- Berlin Space Technologies (BST) is a specialist for small satellite systems and technology. We build on a 30 year tradition of small satellites made in Berlin. BST is vertically integrated and offers reliable and cost-efficient end to end solutions for your mission. Berlin Space Technologies (BST) is a global leader in the NewSpace economy and an experienced supplier of small satellite systems and technologies. Our subsystems fly on more than 100 missions and our state of the art LEOS platform can support the most challenging missions. We are an vertical integrated end to end solution provider. We offer capacity building for emerging space nations, in orbit demonstration for your payloads and together with our partner Azista we can provide entire mega constellations.
Vendor Request for Information Form
Specifications
- Subsystem
- Power Subsystem
- Component Type
- Primary Battery
- Form Factor
- SmallSat
- Vendor
- Berlin Space Technologies
- Dry Mass
- 3.0 kg
- Average Power
- N/A
- Heritage
- Yes
- Status
- In Production
