BET-MAX
Overview

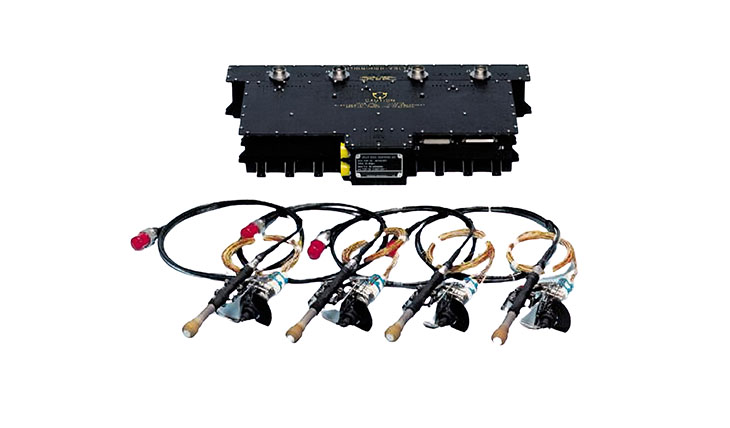

Busek's BET-MAX precision reaction control system seeks to provide the high-resolution control afforded by electrospray propulsion technology. Up to four 125cm3 BET-300P thrusters per centralized PPU can be positioned as desired to provide attitude or orbital control within platforms as small as 3U.
Each thruster can provide throttled continuous thrust from <1µN up to 150µN with sub-µN resolution over the full range. The thruster modules include propellant storage -sufficient propellant to provide over 100Ns of impulse- and all associated feed components.
Looking for more information or want to purchase?
Overview
- Name
- BET-MAX
- Vendor
- Busek
- Subsystem
- Propulsion Subsystem
- Component Type
- Electric Propulsion System
- Form Factor
- All
- Heritage
- N/A
Vendor Details
- Name
- Busek
- Website
- http://www.busek.com/
- Founded
- 1985
Vendor Request for Information Form
Specifications
- Subsystem
- Propulsion Subsystem
- Component Type
- Electric Propulsion System
- Form Factor
- All
- Vendor
- Busek
- Dry Mass
- 0.8 kg
- Average Power
- 14.0 W
- Heritage
- N/A
- Status
- In Production
