C-TT-520 Transponder

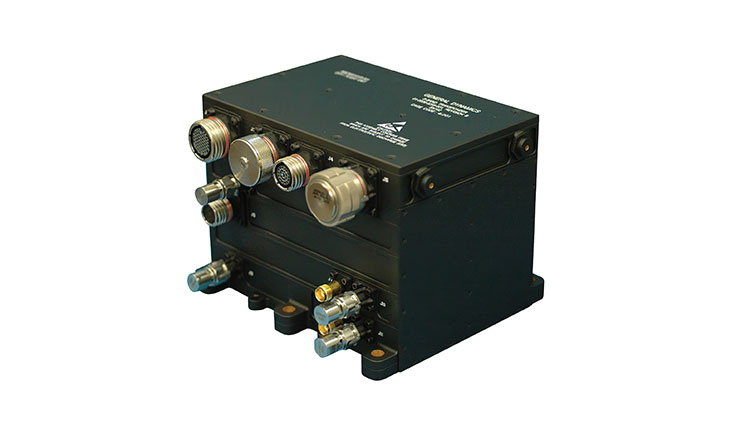

C-TT-520 Transponder image

Overview

Our most robust and flexible S-Band product to date, the model C/TT-520 S-Band multimode transponder provides full-duplex communications with a variety of NASA networks and protocols. It leverages the latest available technologies, traditionally tested and screened in accordance with EEE Level 2 parts program methods. It is ideally suited to the harsh realities of space communications. The C/TT-520 features receive data rates from 125 bps to 3 Mbps and transmit rates up to 6 Mbps. It maximizes throughput while maintaining a noise figure of 2.5 dB and implementation loss of 1.5 dB – assuring robust link closure under even the most marginal of conditions.


The C/TT-520 provides accurate ranging using both Tracking and Data Relay Satellite System (TDRSS) long code pseudo-random noise (PN) ranging and Doppler turnaround ranging. PN ranging meets the stringent requirements of the TDRSS Space Network.

Specifications

Component Type
Transponder
Form Factor
SmallSat
Dry Mass
2.95 kg
Average Power
12.5 W
Heritage
Yes
Status
In Production
