CMCube
Overview

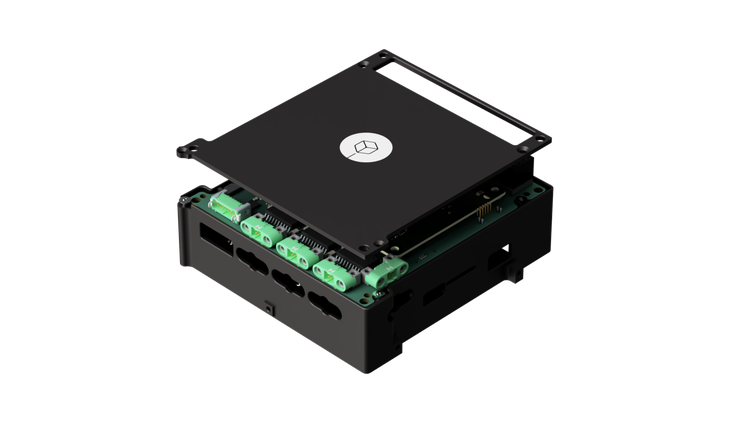

CMCube is a CubeSat Onboard Computer (OBC) powered by Raspberry Pi CM4 with a ARM Cortex M4 based Co-Processor and integrated with NASA's cFS framework that runs on Linux. It provides efficient and versatile computing for CubeSats, allowing easy extension of both software and hardware capabilities. With its modular software design, users can add mission-specific apps without compromising OBC performance, and it supports Multiple ADC interfaces interfaceable with Analog sensors, RTDs, NTCs along with RS485, CAN, I2C, UART interfaces. On-board power isolation and signal isolation for all interfaces are integrated. The built-in hardware watchdog ensures reliability during long-duration missions.
Looking for more information or want to purchase?
Overview
- Name
- CMCube
- Vendor
- TakeMe2Space
- Subsystem
- CDH Subsystem
- Component Type
- On-Board Computer
- Form Factor
- CubeSat
- Heritage
- N/A
- Average Cost
- $4,800 to $6,000 USD
- Average Lead Time
- 2 to 3 months
Details
- Processor
- Quad-core 64-bit Arm Cortex-A72 CPU
- Processor Clock Speed
- 1.5 GHz
- Co-processor
- Arm Cortex-M4 MCU
- Co-processor Clock Speed
- 168 MHz
- Interfaces
- ADC, UART, I2C, HS-CAN, RS-485, USB-C, MIPI-CSI
- SDK
- OrbitOS
- SDRAM
- 8 GB
Vendor Details
- Name
- TakeMe2Space
- Website
- https://tm2.space/
- Founded
- 2024
- Summary
- TakeMe2Space is building in-orbit data centres to meet the soaring demand for AI compute. Space offers a sustainable and economic solution for this need. Our proprietary radiation shielding material lowers the cost of in-space compute by allowing terrestrial components in satellites. Global users can access these satellites via our space apps, OrbitLab and OrbitView, to run algorithms, use sensors, and control satellite orientation. Our indigenously designed and developed satellite hardware was proven on ISRO's PSLV C-60 through our mission, MOI-TD. We offer our compute and other subsystems developed along the way to the space community including satellite builders and Assembly-Integration-Test (AIT) companies.
Vendor Request for Information Form
Specifications
- Subsystem
- CDH Subsystem
- Component Type
- On-Board Computer
- Form Factor
- CubeSat
- Vendor
- TakeMe2Space
- Dry Mass
- 0.25 kg
- Average Power
- 6.0 W
- Heritage
- N/A
- Status
- In Production
