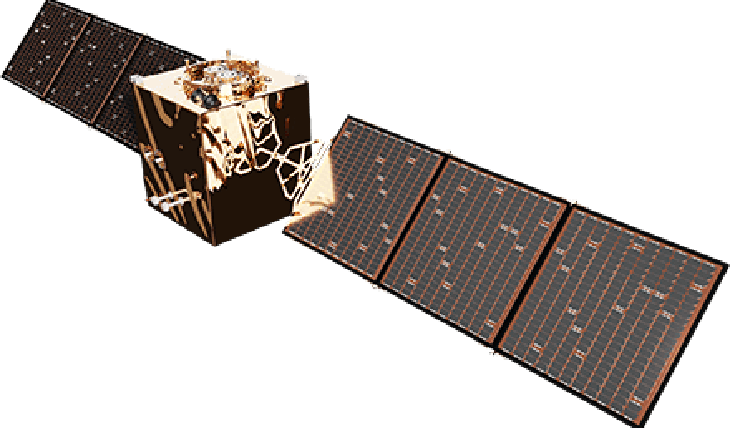

Dragonfly Bus
Overview
The Dragonfly Aerospace Dragonfly Bus is designed to provide accurate spatial resolution Earth-imaging and mapping for a wide range of applications. The system has a long lifetime and features an automated Attitude and Orbit Control System (AOCS) with a Xenon electric propulsion unit. Communication is enabled via an S-band TMTC and an X-band data downlink, and the bus includes a variety of in-built electrical interfaces for simple integration with a range of payloads.
Attitude & Orbit Control
- Pointing control stability: < 0.002º/sec (3-sigma)
- Pointing control accuracy: < 0.02º (3-sigma)
- Slew rate: up to 2º/sec
- Geolocation knowledge accuracy: < 65 m (3-sigma)
- Control frequency: 10 Hz
- Fully automated AOCS: Through target tracking
- Xenon Electric Propulsion System: 28 mN thrust, 1850s Isp
Communications:
- S-Band TMTC: 400 kbps down, 150 kbps up
- X-Band Data Downlink: 1 Gbps
Electrical Power System:
- Energy storage: Up to 2400 Wh
- Solar Array Peak Power: Up to 1130 W
- Orbit Average Power (OAP): 710 W
- Peak power: 4 kW
- Bus Voltage: 28 V (regulated) and 40.5 – 54.0V (unregulated)
Payload:
- Available mass: up to 250 kg
- Available volume: 1000 x 1000 x 1000+ mm
- Available OAP: 630 W
Electrical Interfaces:
- TMTC: CANbus, RS422/RS485
- Data: LVDS / SpaceWire / MGT
- High Speed Data Recorder (HSDR): 4 TB
Looking for more information or want to purchase?
Overview
- Name
- Dragonfly Bus
- Vendor
- Dragonfly Aerospace
- Subsystem
- Bus and Platform
- Component Type
- SmallSat Platform
- Form Factor
- SmallSat
- Heritage
- N/A
Vendor Details
- Name
- Dragonfly Aerospace
- Website
- https://dragonflyaerospace.com/
- Founded
- 2020
- Summary
- Dragonfly Aerospace envisions a future in which our small, high-performance imaging satellites and payloads enable large imaging constellations that provide persistent views of the Earth in a variety of spectrums, providing unprecedented business intelligence and improving people's lives all over the world. Dragonfly Aerospace satellites and payloads are built on a 25-year legacy of components and design principles that date back to the first South African microsatellite, SUNSAT, which was launched in 1999. Since South Africa's entry into the space race, members of our team have worked on every microsatellite space mission.
Vendor Request for Information Form
Specifications
- Subsystem
- Bus and Platform
- Component Type
- SmallSat Platform
- Form Factor
- SmallSat
- Vendor
- Dragonfly Aerospace
- Dry Mass
- 200.0 kg
- Average Power
- N/A
- Heritage
- N/A
- Status
- In Production
