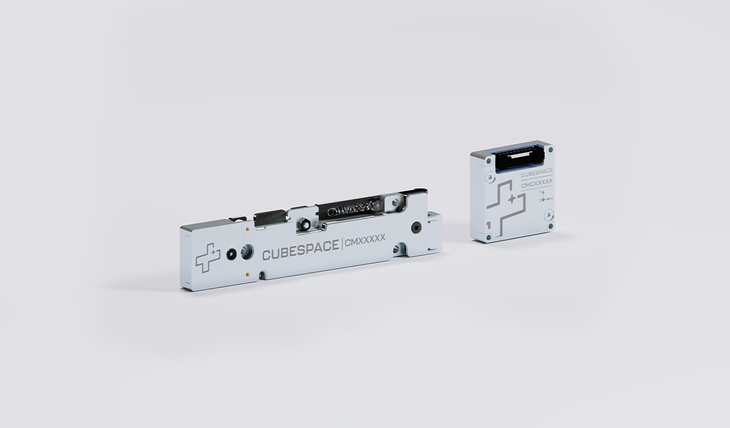

Gen2: CubeMag (Compact & Deployable)
Overview
A 3-axis magnetormeter built for robustness and including a back-up sensor. The sensor comes in a compact or deployable version for satellites with larger magnetic disturbances.
The deployable form factor comes with a built-in redundant magnetometer. This sensor can be deployed to help mitigate magnetic disturbances. A compact form factor is further available for easy integration into your satellite for peace of mind.
The main features of CubeMag include:
• M2 mounting holes
• Deployment test – easy to deploy and stow through
• In-orbit calibration
• Precalibrated magnetometer
• Shared electronic design across the Gen2 family
Download our brochure for more detailed specifications.
Looking for more information or want to purchase?
Overview
- Name
- Gen2: CubeMag (Compact & Deployable)
- Vendor
- CubeSpace
- Subsystem
- ACDS Subsystem
- Component Type
- Magnetometer
- Form Factor
- CubeSat
- Heritage
- N/A
- Average Cost
- $2,300 to $3,500 USD
- Fiscal Year
- 2023
- Average Lead Time
- 2 months
Vendor Details
- Name
- CubeSpace
- Website
- https://www.cubespace.co.za/
- Founded
- 2014
- Summary
- CubeSpace is an aerospace company that specializes in small satellite Attitude Determination and Control Systems (ADCS). The company offers modular, low-power ADCS components designed to have higher performance. The components are designed to be compatible with almost all commercially available CubeSat suppliers. CubeSpace supports each customer to evaluate their ADCS needs, choose the correct hardware solution, and tailor this solution to correctly integrate into their satellite. The services offered are personalized, and the company helps customers to find the balance between powerful ADCS performance and reliable operations. The 480m2 facility is equipped with state-of-the-art equipment such as 160m2 clean room space with an 8-meter-long dark optics calibration room, humidity-controlled thermal chamber, Helmholtz coil, ⌀900 mm x 1300 mm thermal vacuum chamber, 8kN vibration shaker, auto-winding machine, wheel balancing machine, and high accuracy 3-axis rotation stages. The CubeSpace team consists of highly qualified aerospace technicians with IPC class 3 training, and engineers specializing in control system research and development. The company has delivered more than 2200 ADCS components to 140 clients for approximately 240 satellites.
Vendor Request for Information Form
Specifications
- Subsystem
- ACDS Subsystem
- Component Type
- Magnetometer
- Form Factor
- CubeSat
- Vendor
- CubeSpace
- Dry Mass
- N/A
- Average Power
- N/A
- Heritage
- N/A
- Status
- In Production
