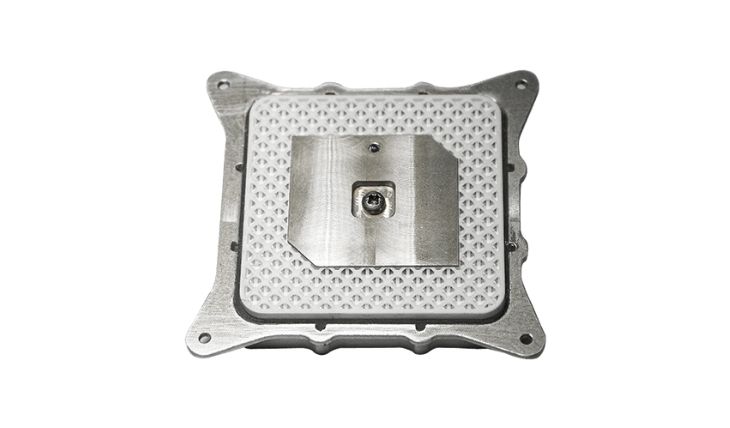

GNSS L1, E1 Band Antenna

Vendor profile

Overview

Our Ceramic 3D Printed GNSS L1/E1 Bands Antenna is the perfect solution for satellite positioning subsystems, receiving signals from the Global Navigation Satellite System constellations to help locate the satellite in space and time.

Developed under the European Space Agency I.T.I contract, this antenna has a technology readiness level 9 and features Anywaves' secret sauce based on an additive manufacturing process. With a unique combination of 3D printing and ceramic material, it's ideally suited to harsh environments like space.

This antenna covers GPS L1 and Galileo E1 bands, providing a boresight gain of 5.5 dBi and hemispherical coverage with a half power beamwidth of 90°. It operates in circular polarization to avoid signal blackouts, and is available in two versions: an engineering model and a flight model. Both versions have the same electrical performance, using the same materials and processes. On flight models, we perform meticulous and rigorous acceptance tests to ensure the highest quality.

With right-hand circular polarization and a size of less than 1U, this antenna is a great choice for LEO platforms. Thanks to our agility and industrialization process, we can deliver your antennas quickly.

Contact our business team for more information about the Ceramic 3D Printed GNSS L1/E1 Bands Antenna today.
https://anywaves.com/products/ceramic-3d-printed-gnss-l1-e1-bands/

Looking for more information or want to purchase?

Contact now

Overview

Name: GNSS L1, E1 Band Antenna
Vendor: Anywaves
Subsystem: Telecom Subsystem
Component Type: Microstrip Antenna
Form Factor: All
Heritage: Yes
Average Lead Time: 3 months

Details

Frequency Band: From 1.551 GHz to 1.591 GHz
Polarization: Right Hand Circular Polarization

Vendor Details

Name: Anywaves
Website: https://anywaves.com/
Founded: 2017
Summary: Anywaves is a France-based satellite antenna solutions provider. It is one of the leading providers of innovative antenna solutions in the space industry. Anywaves specializes in the design, development, and manufacturing of high-performance antennas that excel in the demanding space environment. Located in Toulouse, Europe’s space capital, Anywaves provides high-quality off-the-shelf (COTS) and custom space antennas worldwide. The company's expertise and technical know-how merge Radio Frequency and Thermal Mechanical experience to develop state-of-the-art and compact antennas. Anywaves uses premium materials and technologies that guarantee optimal performance throughout the space mission. Committed to excellence, Anywaves works closely with its clients to understand their unique requirements and provide tailored solutions that meet their specific needs. They offer a range of COTS antennas perfectly designed according to space standards as an answer to the satellite constellations market’s needs, such as TT&C, Data Downlink, and GNSS. In addition, Anywaves is also able to cover spatial missions' specific needs by developing custom antennas: launchers antennas, high gain antennas (payload telemetry, inter-satellite link, telecommunications, etc.), wide band antennas (spectrum surveillance, GNSS, LEO PNT, etc.) or any other type of antennas and applications (integrated antennas, active antennas, etc.), as per the customer requirements. Recognized for its technical excellence by leading entities such as Airbus, Thales, and Maxar, Anywaves is committed to delivering unparalleled performance, reliability, and production efficiency. The company is distinguished by its EN 9100 certification, demonstrating its adherence to rigorous quality and performance standards in the aerospace, defense, and space sectors.
