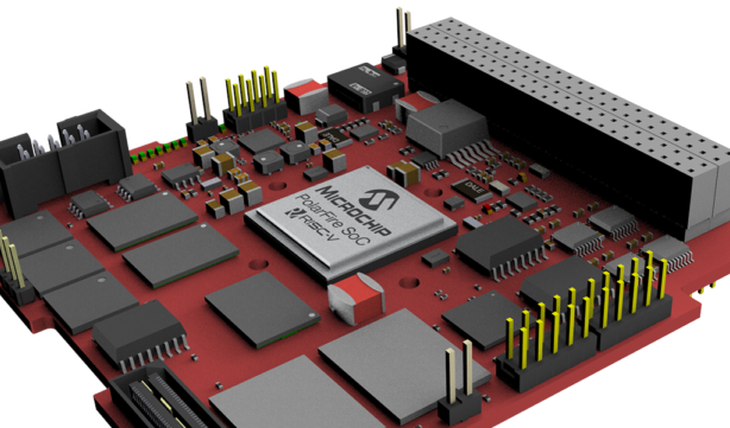

High-Performance Space Data Recorder
Overview
The TartanComm-Bridge is an advanced Space Onboard Data Recorder and protocol converter
designed to provide high-capacity data storage, seamless protocol conversion, and robust
performance for demanding space missions. Powered by the PolarFire SoC FPGA, it combines
exceptional processing capability with flexible interface options, making it ideal for complex
satellite operations.
Software and Ecosystem Support
Operating Systems:
Compatible with Linux, FreeRTOS, VxWorks, and other RTOS.
Development Tools:
Eclipse-based SoftConsole IDE for rapid application development.
Debugging support via JTAG for both bare-metal and RTOS configurations.
Custom FPGA Design:
Supports user-defined processing logic to enhance mission-specific applications
High-Speed Connectivity
4x SpaceWire
2x Gigabit Ethernet
4x Serial Transceiver Lanes:
Con gurable for custom SERDES, PCIe, or SATA interfaces at up to 12 Gbps per lane.
Additional Interfaces:
2x CAN Buses
4x UARTs con gurable for RS232/RS422/RS485.
Optional USB
Advanced Storage Options
Dual M.2 SSD Slots:
Supports high-performance NVMe SSDs in x4 Mode.
eMMC Storage:
Built-in 32/64 GB eMMC for onboard application storage.
SD-Card Support:
Slot available for development and debugging purposes.
Looking for more information or want to purchase?
Overview
- Name
- High-Performance Space Data Recorder
- Vendor
- CAVU AEROSPACE
- Subsystem
- CDH Subsystem
- Component Type
- On-Board Computer
- Form Factor
- All
- Heritage
- Yes
- Average Cost
- $12,000 to $45,000 USD
- Fiscal Year
- 2024
- Average Lead Time
- 4 to 6 months
Vendor Details
- Name
- CAVU AEROSPACE
- Website
- https://CavuAerospace.uk/
- Founded
- 2017
- Summary
- CAVU is a pioneering company started 2017 in Space & Aviation, based in Scotland, Stirling University Innovation park. We are manufacturer of satellite components, Ground Stations, Communication systems, Satellite Cameras, Power Management (EPS) systems, Payload & Data Acquisition devices, and Onboard Computers (OBC). We also offer Satellite Mission Design Services. Our customized products and services cater to space mission design, CubSats, Nano and Pico satellites, and telemetry and condition monitoring solutions. As a leading certified MRO, we are supplier of aircraft parts and services, concentrated on Avionics.
Vendor Request for Information Form
Specifications
- Subsystem
- CDH Subsystem
- Component Type
- On-Board Computer
- Form Factor
- All
- Vendor
- CAVU AEROSPACE
- Dry Mass
- N/A
- Average Power
- 4.0 W
- Heritage
- Yes
- Status
- In Production
