HiSPiCO Transmitter

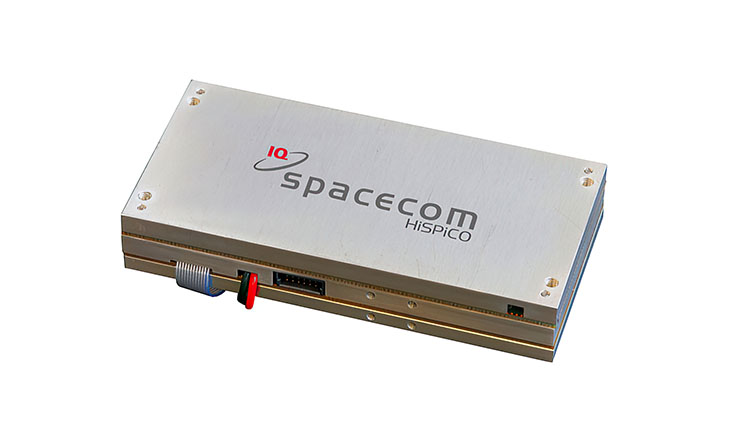

HiSPiCO Transmitter image

Overview

HiSPiCO is a transmitter system for S band communication links from small satellites in LEO environment. It’s a cost effective, miniaturized, low power solution for CubeSats with TRL9 achieved. The wideband downlink system provides up to 1 Mbps at frequencies 2.1 - 2.5 GHz. Optional patch antennas are available.


The application options of this advanced satellite communication technology are apparent in numerous measuring, surveillance and communication tasks, which can be very cost-effectively implemented. Furthermore, an outstanding platform for scientific research tasks is provided e.g. within the context of university missions.

Looking for more information or want to purchase?

Overview

Name
HiSPiCO Transmitter
Component Type
Transmitter
Form Factor
CubeSat
Heritage
Yes

Details

Dimensions
95 x 46 x 15 mm
Operating Temperature
-20 °C to +50 °C
RF Frequency Range
2.1-2.5 GHz
RF Output Power
0.5 W

Vendor Details

Name
IQ Spacecom

Vendor Request for Information Form

Max. 1000 characters

Please include a detailed description in your message. This helps vendors to better understand your request.

Specifications

Component Type
Transmitter
Form Factor
CubeSat
Dry Mass
0.1 kg
Average Power
5.0 W
Heritage
Yes
Status
In Production
