HRVI-2HD

Overview

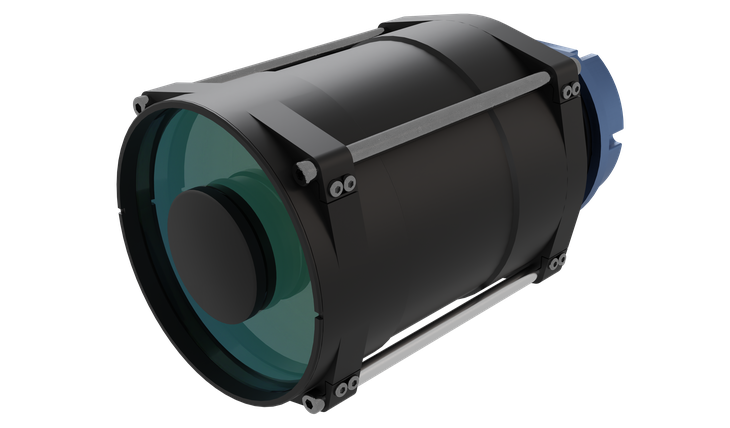

The HRVI-2HD is the latest version of BST high-resolution camera systems. The HRVI-2HD is built around a sophisticated Three Mirror Anastigmat (TMA) and offers 1.92m GSD resolution imagery with a 14.6 km swath. The HRVI-2HD consists of the TMA Telescope and the Sensor and Focus Assembly (SFA) and the Payload Data Processing Unit (PLSU).

Characteristics:
- Resolution: (PAN / MS) 1.92m / 7.68m @ 500 km
- Swath: 14.6 km @ 500 km
- Channels: 1 PAN +4 MS
- DPU: JPEG, 1 TB storage, CCSDS, Encryption
- On Orbit Focusing: Yes
- Size: 540 x 320 x 170 mm³
- Mass: 19 kg
- Design Life: 5 years

Specifications

Component Type
Camera/Imager
Form Factor
SmallSat
Dry Mass
19.0 kg
Average Power
N/A
Heritage
Yes
Status
In Production
