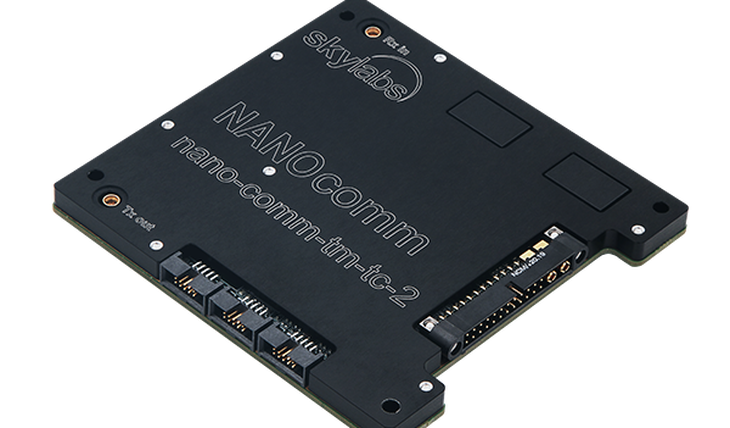

NANOcomm-2 – UHF/VHF-band TM/TC CCSDS Communication subsystem

Vendor profile

Overview

NANOcomm-2 is a highly miniaturised full-duplex TM/TC satellite communication subsystem. Its best-in-class SWaP characteristics assure the NANOcomm-2 outstanding performance for the emerging space market.

Powered by PicoSkyFT, the NANOcomm-2 features embedded intelligence that directly enhances the overall functionality of the satellite system.

Several intelligent built-in functions enable the NANOcomm-2 to operate as a fully autonomous system, facilitating the streamlined acquisition of satellite diagnostic data.

SkyLabs end-to-end communication solution combines satellite command, monitor and management and payload data reception with SkyEGSE-comm SDR modem based on comprehensive NANOsky CMM software development kit.

KEY FEATURES

• Best SWaP-optimized product in its class
• CCSDS compliant UHF and VHF full-duplex transceiver
• Two independent RF transceivers chains for superior reliability
• RF output power: Up to 31 dBm
• Input sensitivity -111 dBm @ 10% PER (GMSK 9600bps) LNA on the receive path
• Frequency band: 420 - 450 MHz / 130 – 200 MHz
• Data rates: Up to 25 kbps @ 25 kHz (GFSK) Adjustable data rate in flight
• Baseband bandwidth: 12 kHz, 18 kHz, 25 kHz
• Interface: Redundant CAN-TS
-RF Tx out (SMPM connector)
-RF Rx in (SMPM connector)
• Power consumption:
-Up to 5 W (Rx + Tx @ 31 dBm output power)
-Up to 21.3 W (Rx only)

Looking for more information or want to purchase?

Contact now

Overview

Name: NANOcomm-2 – UHF/VHF-band TM/TC CCSDS Communication subsystem
Vendor: SkyLabs
Subsystem: Telecom Subsystem
Component Type: Transceiver
Form Factor: CubeSat
Heritage: Yes

Vendor Details

Name: SkyLabs
Website: https://www.skylabs.si/
Founded: 2012
Summary: SkyLabs is a space-technology oriented company providing miniaturized on-board data handling solutions and innovative approach to space engineering. Our primary focus is on high-tech, tailor-made solution development, including fault-tolerant hardware and software development, digital signal processing, radiation-hardened-by-design IP core development, fast prototyping, and space/ground segment communication. We are a vibrant team of electrical, mechanical and computing engineers and scientists providing services and technology solutions for the most demanding terrestrial and aerospace applications. By following the latest technology trends we provide innovative solutions with a proactive and creative design approach. Expertise & Competences • Awareness of harsh space radiation environment effect. • RT electronics, FT IP cores and ASIC designs. • Hardware accelerated approach. • Fail safe software development. • RF systems and signal processing. • Mechanical structures and systems. NANOsky avionics • Highly miniaturized cost-efficient avionics with fault-tolerant features. • Radiation hardened by design. • Constant current monitoring and limiting. • SEE immunity. • Innovative error mitigation techniques. • Selective component technology with flight heritage. • Sophisticated three-level FDIR policy. • EDAC protected memories/registers. • Redundancy on all critical functions and thoughtful component selection ensure robustness, • High reliability and availability of the platform. • Compliant with NANOsky CMM™ Software Development Kit AI@Edge support Highly miniaturized cost-efficient avionics with fault-tolerant features. Implementation of superior AI embedded algorithms directly on sub-systems is enabling onboard data analysis, decision-making, and efficient utilization of resources. Solutions for the most demanding applications with very high-performance needs. skyEGSE solutions Turn-key EGSE solutions that enables faster “Time-to-Space”. Cost efficiency, compatibility with major ground station service providers and security features make this an ideal solution for constellation missions. Various options of advanced EGSE equipment and software are available.
