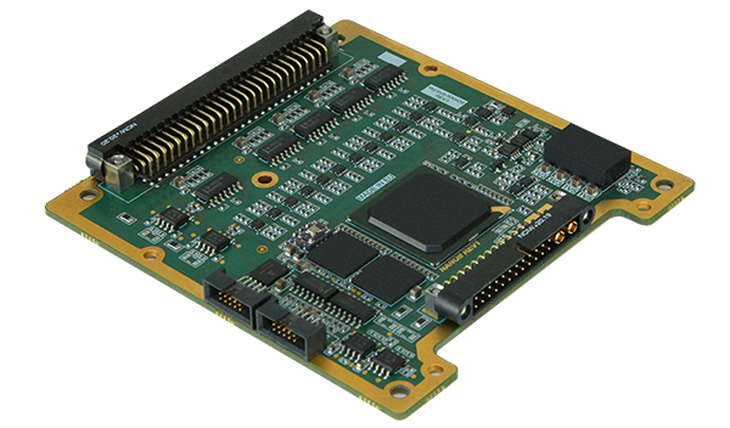

NANOif-2 – Intelligent Remote Terminal Unit

Vendor profile

Overview

The NANOif-2 represents an intelligent remote terminal unit for interconnection of satellite's on-board sensors, instruments, or payloads into a seamless and unified on-board data handling architecture.

NANOif-2 support several highly configurable user interfaces, as discrete ADC channels, Digital Input/Output, or communication links as UARTs, RS422/485, SPIs, I2Cs, and auxiliary CAN. All the interfaces are seamlessly transformed into a standard NANOsky I TM/TC redundant CAN bus interface. The translation of user interfaces is performed in a way to provide maximal RTU independence to the user's higher protocols. Several intelligent built-in functions enable the use of the NANOif-2 RTU as a fully autonomous system, making the acquisition and conditioning of satellite sensors data practically autonomous.

KEY FEATURES

User interfaces:
• 2x auxiliary CAN bus (CSP protocol)
• 5x RS422/485 full duplex channels (protocol independent)
• 24x Analog input channels with concurrent acquisition and dedicated power interface
• 20x GPIO 3V3 compliant
• 8x GPIO with remap capability (GPIO, UART, SPI, I2C)
• User interfaces available on standard connector or alternatively support for legacy PC104 connector

Remote Terminal Interfaces:
• Redundant CAN interface for TM/TC.

4 Mbit NMV for housekeeping telemetry storage (unlimited read/write endurance).

Instant boot up at power on.

Comprehensive local subsystem telemetry (currents, voltages, temperatures, etc.).

Looking for more information or want to purchase?

Contact now

Overview

Name: NANOif-2 – Intelligent Remote Terminal Unit
Vendor: SkyLabs
Subsystem: CDH Subsystem
Component Type: CDH Other
Form Factor: CubeSat
Heritage: Yes
