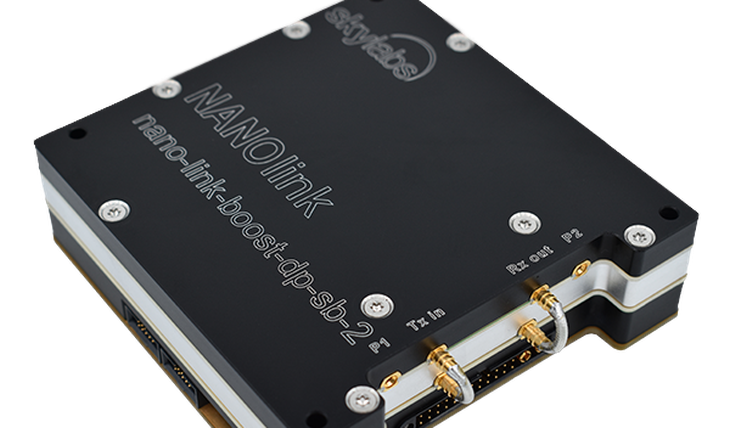

NANOlink(-S)-boost-dp – S-Band TM/TC CCSDS Communication Subsystem

Vendor profile

Overview

The NANOlink(-S)-boost-dp is a highly miniaturized full-duplex TM/TC satellite communication subsystem, equipped with an additional efficient integrated amplifier, a sophisticated two antenna port splitter/combiner, and an optional built-in encryption system that provides a high level of security between the satellite and the ground station (GS).

Several intelligent built-in functions enable the NANOlink(-S)-boost-dp to operate as a fully autonomous system, facilitating the streamlined acquisition of satellite diagnostic data. The optional security features (-S) utilize the CCSDS Space Data Link Security protocol.

Additionally, the NANOlink(-S)-boost-dp supports the symmetric AES-GCM-256 authenticated encryption algorithm and accommodates multiple encryption keys, making it a key subsystem in NANOsky avionics.

SkyLabs end-to-end communication solution combines satellite command, monitor and management and payload data reception with SkyEGSE-comm SDR modem based on comprehensive NANOsky CMM software development kit.

KEY FEATURES

• Best SWaP-optimized product in its class
• CCSDS compliant S-band full duplex transceiver
• Software Defined Radio architecture
• Advanced FDIR supervision functionality of SDR functionality
• RF output power: Up to 31.5 dBm (1.4 W) per antenna port
• Frequency band:
-Tx 2.200 - 2.300 GHz
-Rx 2.025 - 2.110 GHz
• Input sensitivity -86 dBm @ 4 Mbps OQPSK
• Data rates: Up to 4 Mbps @ 2.5 MHz (OQPSK) Adjustable data rate in flight
• Interface: Redundant CAN-TS and LVDS-TS
• Power consumption: 17 W (Rx + Tx @ 1.4 W per each antenna)
• Security (optional)
-Encryption: AES-GCM-256
-CCSDS 355.0-B-2: SDLP
-CCSDS 355.1-B-1: SDLP-EP
• Comprehensive housekeeping telemetry (voltages, currents, temperatures,...)
• Redundant CAN for TM/TC
• Additional PA to boost RF output power
• Integrated diplexer interfaces to the splitter/combiner on two antenna ports
• Integrated additional RX filter coupled with an LNA

Looking for more information or want to purchase?

Contact now

Overview

Name: NANOlink(-S)-boost-dp – S-Band TM/TC CCSDS Communication Subsystem
Vendor: SkyLabs
Subsystem: Telecom Subsystem
Component Type: Transceiver
Form Factor: CubeSat
Heritage: N/A
