NCTR-M003

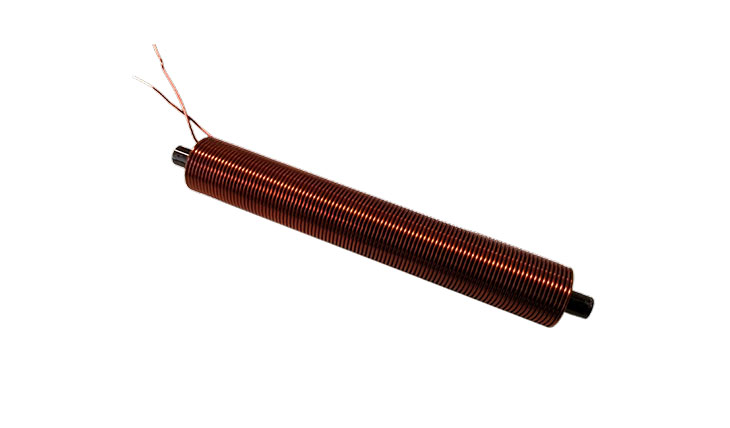

NCTR-M003 image

Overview

Magnetorquers offer a method of controlling the attitude of a spacecraft either directly, by interacting with the local Earth’s magnetic field or, more usually, in combination with reaction wheels. This secondary method allows for the dumping of excess momentum in the reaction wheels without the need for a complex propulsion system.


The NewSpace Systems (NSS) magnetorquer rods use a magnetic alloy rod which produces an amplification effect over an air cored magnetorquer. This allows a system that uses less power and is less susceptible to magnetic torque variations due to temperature.
Each rod is typically bifilar wound for redundancy, or the windings can be activated together to increase the torque produced. While drive circuits for the rods can be supplied if required, they typically run directly between a switched power output and the on-board power control system.


The NSS magnetorquer rod designs are TRL 9 and have extensive in-orbit heritage. Some of the larger NSS magnetorquer rods first flown in 2014 on the SaudiSat-4 and DX-1 missions. Since then, NSS has become one of the largest magnetorquer rod manufacturers in the world, having delivered more than 200 CubeSat Rods and 1000 MicroSat Rods to a variety of international missions and constellations, all with differing performance requirements. To date, this product has been
baselined on three international constellations.

Looking for more information or want to purchase?

Overview

Name
NCTR-M003
Component Type
Magnetorquer
Form Factor
CubeSat
Heritage
Yes

Vendor Details

Name
NewSpace Systems

Vendor Request for Information Form

Max. 1000 characters

Please include a detailed description in your message. This helps vendors to better understand your request.

Specifications

Component Type
Magnetorquer
Form Factor
CubeSat
Dry Mass
0.03 kg
Average Power
0.25 W
Heritage
Yes
Status
In Production
