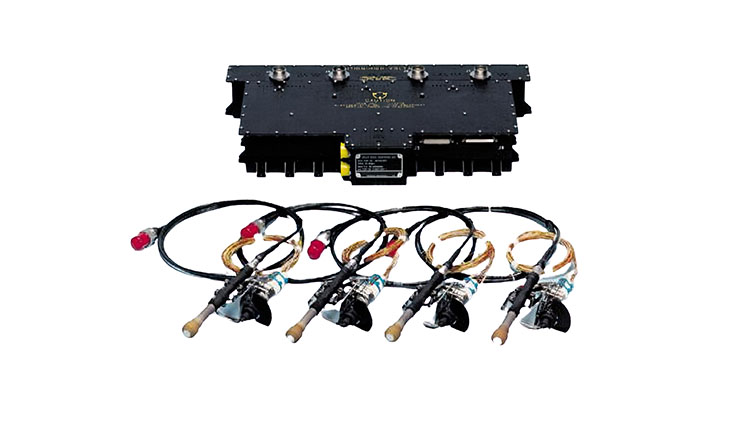

NEXT 6.9 kW Ion System (High Pressure)

Vendor profile
NEXT 6.9 kW Ion System (High Pressure) image unavailable

Overview

The NEXT 6.9 kW Ion Propulsion System is a new state of the art electric propulsion system that operates on Xenon. Designed to have a specific impulse greater than 4100 seconds with a nominal thrust of 235 mN.

Specifications

Subsystem
Propulsion Subsystem
Component Type
Electric Propulsion System
Form Factor
SmallSat
Vendor
Aerojet Rocketdyne
Dry Mass
17.4 kg
Average Power
3,750.0 W
Heritage
N/A
Status
In Production
Datasheet
  • Designer logo

    Try Designer

    Design, model, and evaluate satellite mission concepts quickly with our software.

    Launch designer

  • Aerojet Rocketdyne

    View all products

    • Similar Components

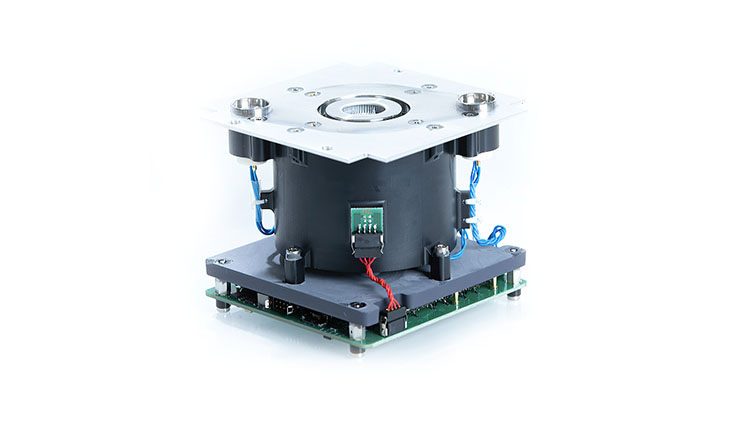

    Water Ion Thruster

    Pale Blue

    NEXT 6.9 kW Ion System (High Pressure) image unavailable

    AEPS

    Aerojet Rocketdyne

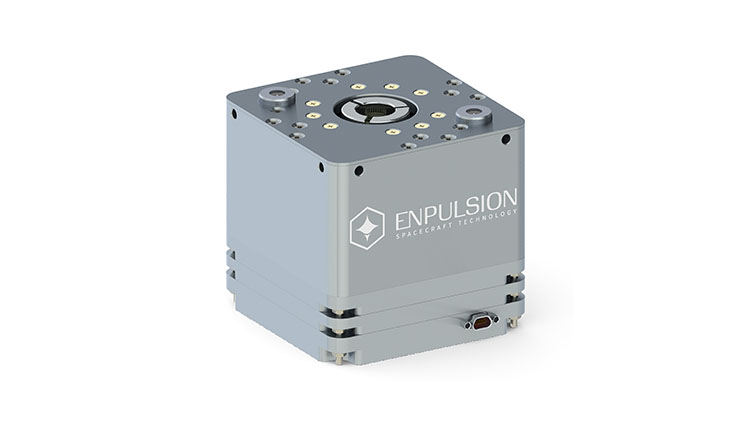

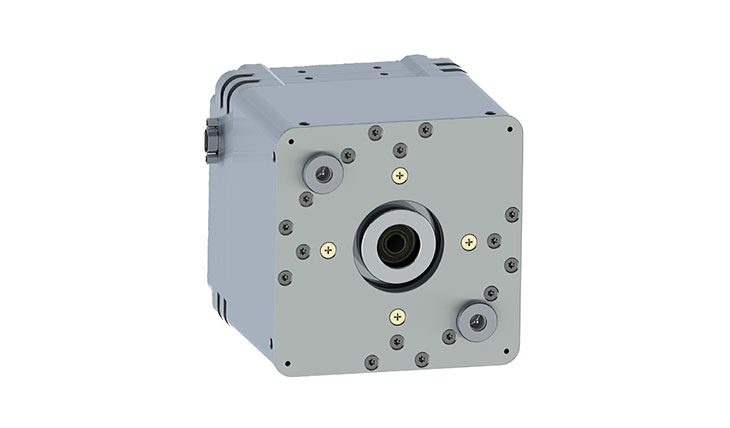

    IFM Nano Thruster SE
