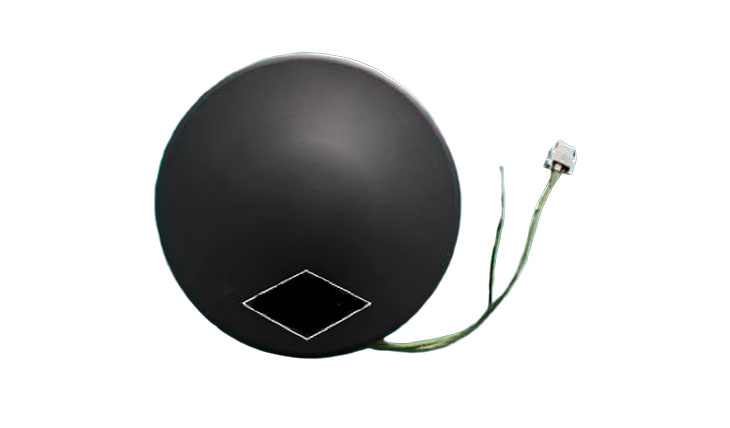

RW270
Overview
The RW270 is a ball-bearing reaction wheel system for exerting inertia within the attitude control system of a satellite. It includes a brushless DC motor, reaction wheel body, base, welding ring, bearing components and control circuit board. The reaction wheel receives commands from the on-board computer (OBC) which controls the brushless DC motor through the control circuit. The DC motor drives the reaction wheel body rotating as instructed by the OBC. By utilizing angular momentum and reaction torque generated by wheel rotation and acceleration/deceleration separately, the satellite attitude can be adjusted and controlled.
Looking for more information or want to purchase?
Overview
- Name
- RW270
- Vendor
- OCE Technology
- Subsystem
- ACDS Subsystem
- Component Type
- Reaction Wheel
- Form Factor
- SmallSat
- Heritage
- N/A
Vendor Details
- Name
- OCE Technology
- Website
- https://ocetechnology.com/
- Summary
- O.C.E. Technology supplies radiation-hardened system-on-chips, system-in-package memories, on-board computers, and custom parts. Its industry leading debug software accelerates development times thus reducing cost. The company’s branded products division include satellite subsystems from the Chinese space program.
Vendor Request for Information Form
Specifications
- Subsystem
- ACDS Subsystem
- Component Type
- Reaction Wheel
- Form Factor
- SmallSat
- Vendor
- OCE Technology
- Dry Mass
- 7.3 kg
- Average Power
- 10.0 W
- Heritage
- N/A
- Status
- In Production
