RWA-05

Vendor profile

Overview

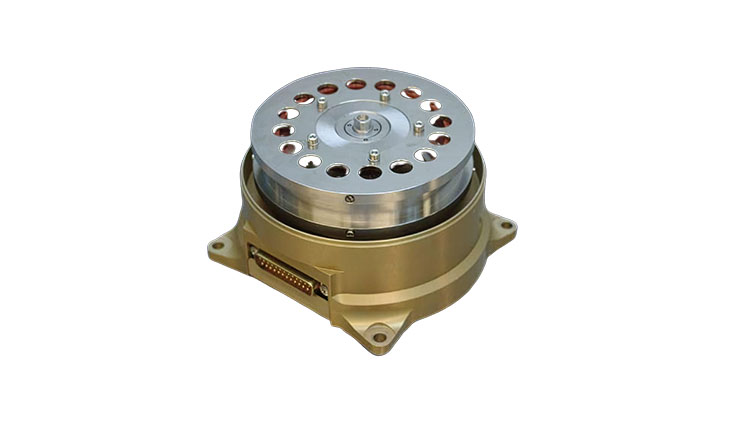

The RWA-05 by Berlin Space Technologies is a reaction wheel assembly with integrated fiber optical Gyro (RWA) for small satellites. The integrated gyro allows precise control loops such as precise speed, angular rate and angle control loops as they have been pioneered on Berlin satellites since 1994. The RWA-05 has space heritage and is qualified for 5-year LEO operation.

Specifications:
- Dimensions: 105 x 107 x 110 mm³
- Mass: 1.7 kg (including gyro)
- Angular Momentum: 0.5 Nms
- Torque: 16 mNm @ 500 rpm
- Typical Speed: 5000 rpm
- Speed Control Accuracy: +/- 2 rpm
- Design Life: 5 years LEO
- Space Heritage: Yes

Looking for more information or want to purchase?

Contact now

Overview

Name: RWA-05
Vendor: Berlin Space Technologies
Subsystem: ACDS Subsystem
Component Type: Reaction Wheel
Form Factor: SmallSat
Heritage: Yes

Vendor Details

Name: Berlin Space Technologies
Website: https://www.berlin-space-tech.com/
Founded: 2009
Summary: Berlin Space Technologies (BST) is a specialist for small satellite systems and technology. We build on a 30 year tradition of small satellites made in Berlin. BST is vertically integrated and offers reliable and cost-efficient end to end solutions for your mission. Berlin Space Technologies (BST) is a global leader in the NewSpace economy and an experienced supplier of small satellite systems and technologies. Our subsystems fly on more than 100 missions and our state of the art LEOS platform can support the most challenging missions. We are an vertical integrated end to end solution provider. We offer capacity building for emerging space nations, in orbit demonstration for your payloads and together with our partner Azista we can provide entire mega constellations.
