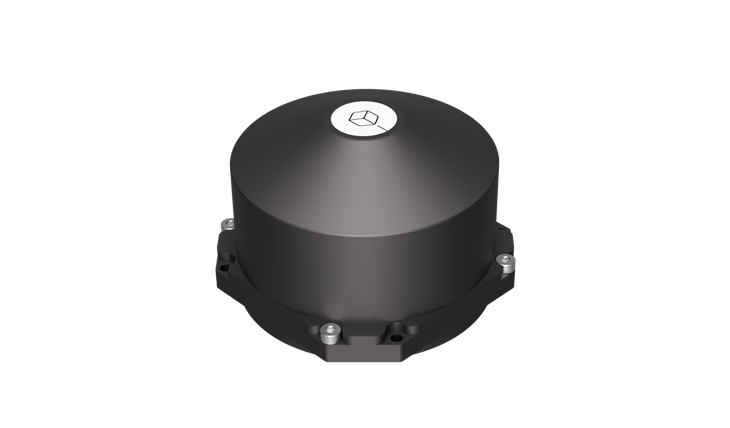

SpaceWheel
Overview
Engineered for robust in-orbit performance, the SpaceWheel by TakeMe2Space delivers a nominal momentum of 30 mNms and maximum torque of 75 mNm, supporting fine control accuracy of ±1 RPM at speeds above 100 RPM.
Looking for more information or want to purchase?
Overview
- Name
- SpaceWheel
- Vendor
- TakeMe2Space
- Subsystem
- ACDS Subsystem
- Component Type
- Reaction Wheel
- Form Factor
- CubeSat
- Heritage
- Yes
- Average Cost
- $12,500 USD
- Average Lead Time
- 2 to 3 months
Details
- Interfaces
- RS-485, CAN
- Max RPM
- 6500
- Momentum
- 30 mNms
- Supply Voltage
- 24 V
- Torque
- 75 mNm
Vendor Details
- Name
- TakeMe2Space
- Website
- https://tm2.space/
- Founded
- 2024
- Summary
- TakeMe2Space is building in-orbit data centres to meet the soaring demand for AI compute. Space offers a sustainable and economic solution for this need. Our proprietary radiation shielding material lowers the cost of in-space compute by allowing terrestrial components in satellites. Global users can access these satellites via our space apps, OrbitLab and OrbitView, to run algorithms, use sensors, and control satellite orientation. Our indigenously designed and developed satellite hardware was proven on ISRO's PSLV C-60 through our mission, MOI-TD. We offer our compute and other subsystems developed along the way to the space community including satellite builders and Assembly-Integration-Test (AIT) companies.
Vendor Request for Information Form
Specifications
- Subsystem
- ACDS Subsystem
- Component Type
- Reaction Wheel
- Form Factor
- CubeSat
- Vendor
- TakeMe2Space
- Dry Mass
- 0.28 kg
- Average Power
- 7.0 W
- Heritage
- Yes
- Status
- In Production
