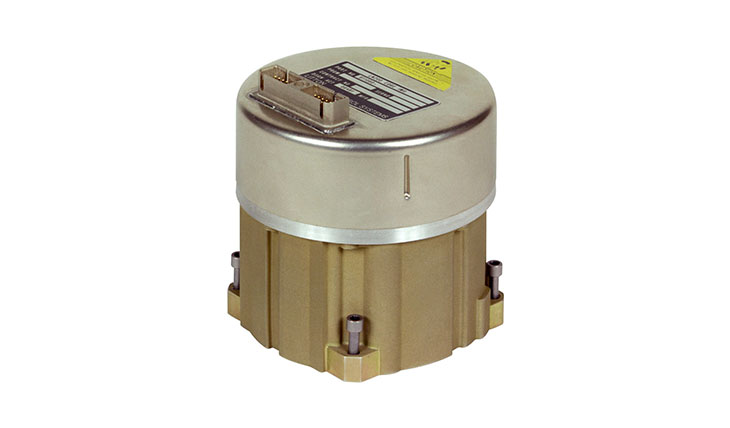

STIM300

Overview

STIM300 is a small, tactical grade, low weight, high performance non-GPS aided Inertial Measurement Unit (IMU). It contains 3 highly accurate MEMS gyros, 3 high stability accelerometers and 3 inclinometers. The IMU is factory calibrated and compensated over its entire operating temperature range.

STIM300 is a cost-effective ITAR free solution for systems that only had FOGs as an alternative when reaching for the performance level of that STIM300 can offer.

STIM300 has extensive flight heritage has operated in orbit around Earth, been flown to the moon, installed on the ISS, and is planned for future deep space missions.

Specifications

Component Type
IMU/IRU
Form Factor
CubeSat
Dry Mass
0.055 kg
Average Power
1.5 W
Heritage
Yes
Status
In Production
