T-715 S-Band Transmitter

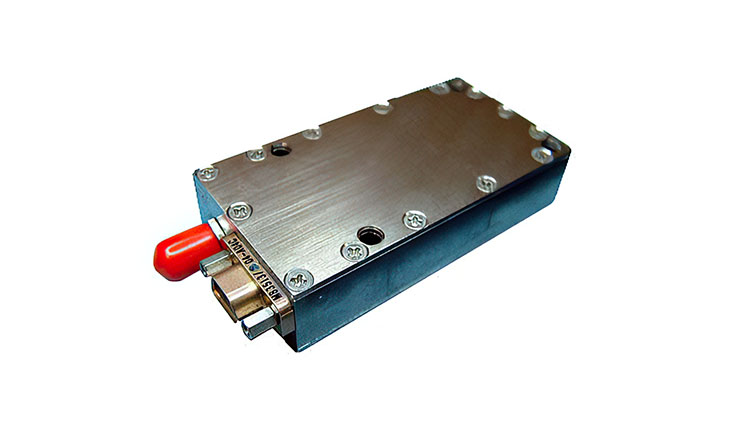

T-715 S-Band Transmitter image

Overview

Model T-715 is a S-Band TDRSS Multiple Access compatible telemetry transmitter. The unit is compatible with TDRSS Data Group 1 Mode 2 and Data Group 2 modes. Offering commandable forward error-correction and pseudo-random (PN) spreading, the T-715 provides flexibility for various mission scenarios. Weighing less than 5 lb. with and RF output power greater than 38 dBm, the T-715 can also be factory tuned in frequency to operate with one of the many TDRSS single-access S-Band telemetry channels.

Specifications

Component Type
Transmitter
Form Factor
SmallSat
Dry Mass
2.26 kg
Average Power
N/A
Heritage
Yes
Status
In Production
