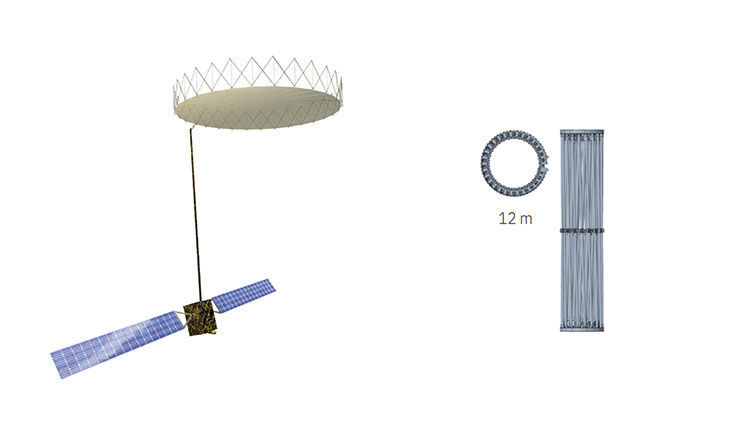

12m Ka-Band Perimeter Truss Reflector

12m Ka-Band Perimeter Truss Reflector image

Overview

The Ka-band Perimeter Truss Reflector is available with the Large Telescoping Boom that enables higher focal lengths, lower mass and compact stowage. With boom diameters as small as 20 centimeters, it supports boom lengths up to 50 meters. With precision pointing capability, high stiffness and low mass, it meets the challenging requirements of modern satellite antennas. In addition, its composite tube fabrication, composite lead screw, segment retention detents and latches have been tested and successfully deployed, resulting in a low-risk design.

Specifications

Component Type
Reflector Antenna
Form Factor
SmallSat
Dry Mass
54.3 kg
Average Power
N/A
Heritage
Yes
Status
In Production
