ADCS Simulator

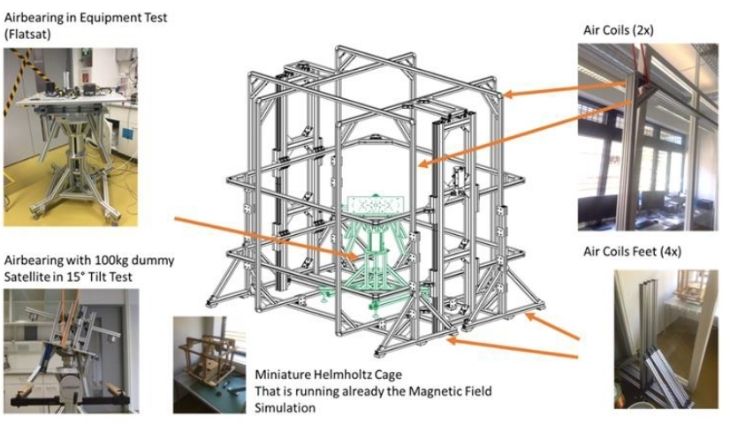

ADCS Simulator image

Overview

The BST ADCS simulator is a tool to design and test the attitude control functionality of a small satellite. The simulator consists of three main parts: Air Bearing Table, Magnetic Field Simulator, Sun Simulator. Additionally BST can offer a GPS simulator, a Star Simulator and a full ADCS simulation suite to complement the package.


CHARACTERISTICS:
Air Bearing table
- Load Capacity: 200kg
- 3-Axis Bearing
- 15° Tilt Angle
- Automatic Balancing
- Automatic lift to and from air
Safety Mechanism
- Maximum tilt limiter
- Automatic lift when loss of pressure
Magnetic Field Simulator
- 2.3m Coil System (rectangular)
- +/- 200nT
- 1% Accuracy
Sun Simulator
Optional:
- GPS Simulator
- Star Simulator
- ADCS HIL Software

Specifications

Subsystem
Other
Component Type
Other
Form Factor
All
Dry Mass
N/A
Average Power
N/A
Heritage
N/A
Status
In Production
