Thermal Vacuum Chamber

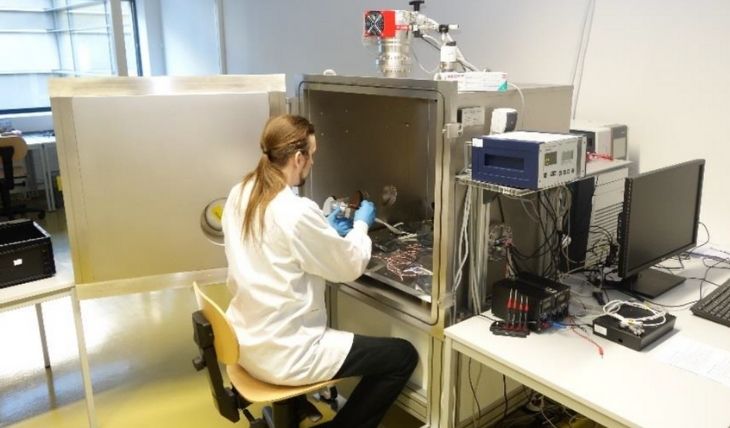

Thermal Vacuum Chamber image

Overview

Berlin Space Technologies offers cost effective solutions for thermal vacuum tests (TVAC). Our TVAC chambers are built to your specification and tailor-made to the complex test regime of the space industry. They offer automatic safety and logging modes which allow the operator to run the chamber without human supervision.


CHARACTERISTICS:
Useful volume: 800x800x800mm
Vacuum Level: 10e-6mbar
Thermal System: -80°C to +150°C (cryocooler)
Thermal Shroud: active (cryocooler)
Ports:
- Viewports
- Electrical Feed Through
- RF Feed Through (optional)
Automatic monitoring system:
- Thermal monitoring
- Safety monitoring for remote operation
- Data logging for remote operation

Specifications

Subsystem
Other
Component Type
Other
Form Factor
All
Dry Mass
N/A
Average Power
N/A
Heritage
N/A
Status
In Production
