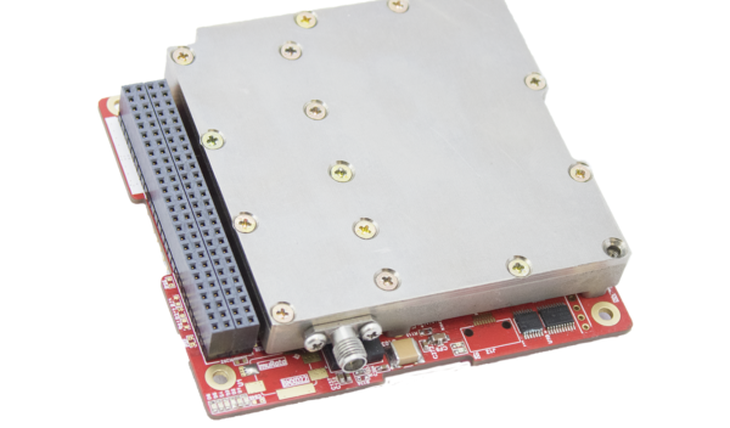

EWC27 + OPT27-SRX - X/S Transceiver
Overview
EWC27+OPT27-SRX answers to this new game-changing on small satellites, permitting simultaneously:
Telemetry & Telecommand (TT&C) in a single miniature unit
X Band (8GHz) fast telemetry up to 100 Mbps (option)
Robust telecommand by an S band uplink (2025-2110MHz).
A smart concept implemented to control the supplies of the power amplifier in order to obtain the best efficiency for each RF power level. The power consumption is always optimized. The architecture of the power supplies is designed to protect the transmitter against latch-up effects from heavy ions in space.
Syrlinks «nano» radios are designed for 2 years lifetime LEO missions. The reliability concept comes from Syrlinks team experience, since ROSETTA mission, in design and manufacturing of radios for micro and mini satellites. A specific product quality approach has been improved since MYRIADE platform and ROSETTA mission with CNES.
EWC27 design and manufacturing are mainly based on qualified COTS components, stressing tests on QM units. Architecture inherits from EWC28 X Band transmitter, already in-flight proven on different missions, especially PROBA-V (ESA/QinetiQ Space nv).
EWC27 XBT can be adapted for Deep Space, especially in terms of frequency band, bitrate, ...
Overview
- Name
- EWC27 + OPT27-SRX - X/S Transceiver
- Vendor
- Syrlinks
- Subsystem
- Telecom Subsystem
- Component Type
- Transceiver
- Form Factor
- CubeSat
- Heritage
- Yes
Vendor Details
- Name
- Syrlinks
- Founded
- 2011
- Summary
- Driven by Space, Safety and Defense market growth, Syrlinks is developing new product lines. Syrlinks design and manufacture products for the space market, safety, defense & time-frequency in particularly in the following areas: SPACE : radiocommunication and radionavigaion equipment for small platforms (Nano, Micro and Mini satellites): • TTC Transceivers in S, X and K/Ka Band, • High Data Rate transmitters in X and Ka band, • Precise GNSS receivers (POD), Spectrum monitoring payloads, •LEO PNT payloads and payloads for data collection. DEFENSE: Ruggedized communications Systems and Geolocation / Navigation equipment for Defense applications SAFETY: Various distress and tracking beacons : Cospas / Sarsat, AIS & Argos TIME-FREQUENCY: Syrlinks has engineered productsrs for many years for embedded applications such as : • OCXO : Oven Controlled Xtal Oscillators, • Modules for Synchronization, Ruggedized frequency synthesizers • Micro Atomic Clocks with Cesium.
Vendor Request for Information Form
Specifications
- Subsystem
- Telecom Subsystem
- Component Type
- Transceiver
- Form Factor
- CubeSat
- Vendor
- Syrlinks
- Dry Mass
- N/A
- Average Power
- N/A
- Heritage
- Yes
- Status
- In Production
