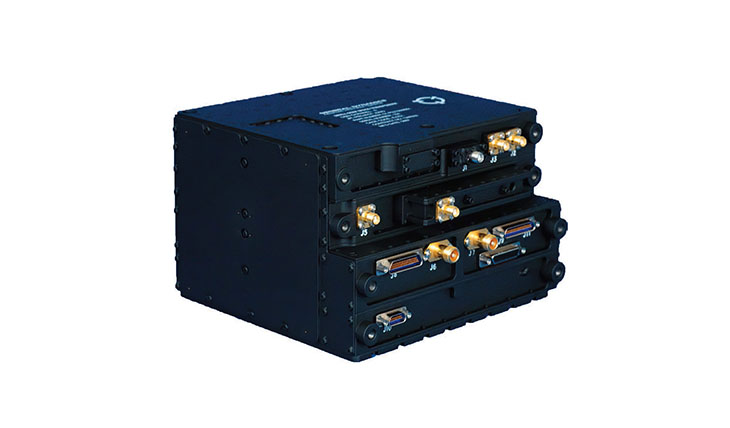

EWC31 - S/S Band Transponder
Overview
Syrlinks (with CNES support) has developed a high performance CCSDS S-band transceiver named EWC31 for NanoSat and CubeSat platforms.
Some “electronic fuses” are implemented on board in order to switch-off some power lines in case of latch-up – or over current consumption – due to space radiations.
For the transmit section, the equipment operates in the 2200–2290 MHz range. The RF output power can be adjusted from +27 to +33 dBm with data rate from 10 kbps to 2 Mbps.
For the receiver section, the equipment operates in the 2025–2110MHz frequency range at a data rate which can be selected in the range from 8 to 256 kbps.
*The SME label awarded by CNES underlines the excellence of a key SME space supplier in developing porducts or providing space services.
Overview
- Name
- EWC31 - S/S Band Transponder
- Vendor
- Syrlinks
- Subsystem
- Telecom Subsystem
- Component Type
- Transponder
- Form Factor
- CubeSat
- Heritage
- Yes
Vendor Details
- Name
- Syrlinks
- Founded
- 2011
- Summary
- Driven by Space, Safety and Defense market growth, Syrlinks is developing new product lines. Syrlinks design and manufacture products for the space market, safety, defense & time-frequency in particularly in the following areas: SPACE : radiocommunication and radionavigaion equipment for small platforms (Nano, Micro and Mini satellites): • TTC Transceivers in S, X and K/Ka Band, • High Data Rate transmitters in X and Ka band, • Precise GNSS receivers (POD), Spectrum monitoring payloads, •LEO PNT payloads and payloads for data collection. DEFENSE: Ruggedized communications Systems and Geolocation / Navigation equipment for Defense applications SAFETY: Various distress and tracking beacons : Cospas / Sarsat, AIS & Argos TIME-FREQUENCY: Syrlinks has engineered productsrs for many years for embedded applications such as : • OCXO : Oven Controlled Xtal Oscillators, • Modules for Synchronization, Ruggedized frequency synthesizers • Micro Atomic Clocks with Cesium.
Vendor Request for Information Form
Specifications
- Subsystem
- Telecom Subsystem
- Component Type
- Transponder
- Form Factor
- CubeSat
- Vendor
- Syrlinks
- Dry Mass
- N/A
- Average Power
- N/A
- Heritage
- Yes
- Status
- In Production
