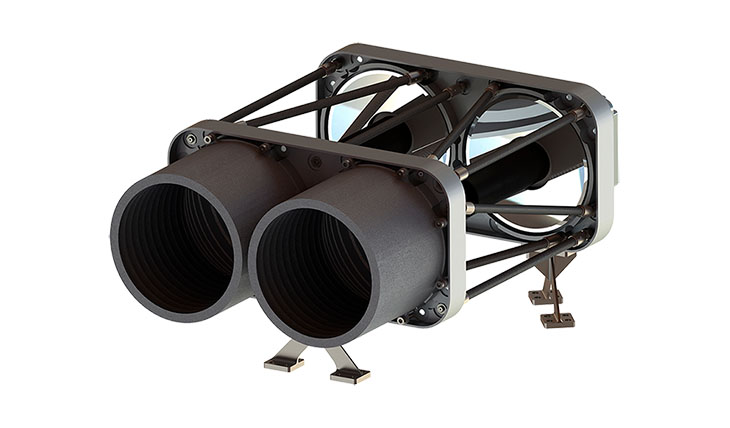

iSIM-90

Overview

iSIM-90 is the lightest and most compact optical payload of the iSIM family. It has been purposefully designed to fit 12U/16U CubeSat platforms, while keeping a high performance to mass ratio.

The payload includes the optical front-end as well as state-of-the-art CMOS matrix detectors and an electronics subsystem for payload management and control.

With a total mass below 10 kg, iSIM-90 can achieve a GSD <2 m from an altitude of 500 km. It covers the Visible & Near InfraRed (VNIR) spectral range, offering both panchromatic and multispectral capabilities according to the user´s needs.

The Super Resolution algorithm developed by SATLANTIS can improve the spatial resolution by a factor of at least 2.5 and match the GSD to the instrument’s GRD.

Specfiications

Component Type
Camera/Imager
Form Factor
CubeSat
Heritage
N/A
Dry Mass
6.0 kg
Average Power
25.0 W
Status
In Production
