iSIM-SWIR

Overview

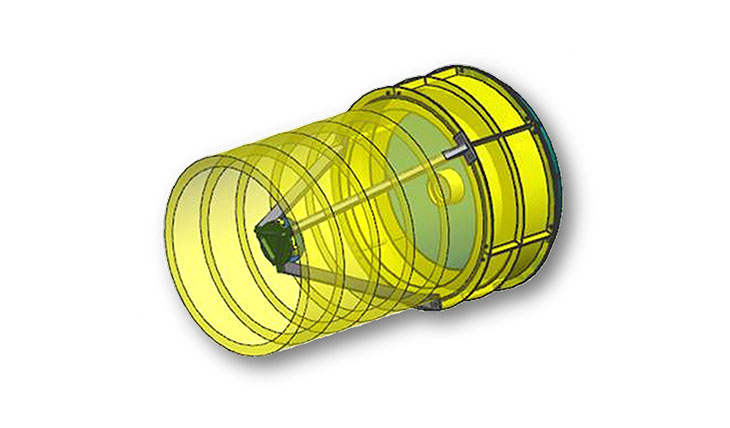

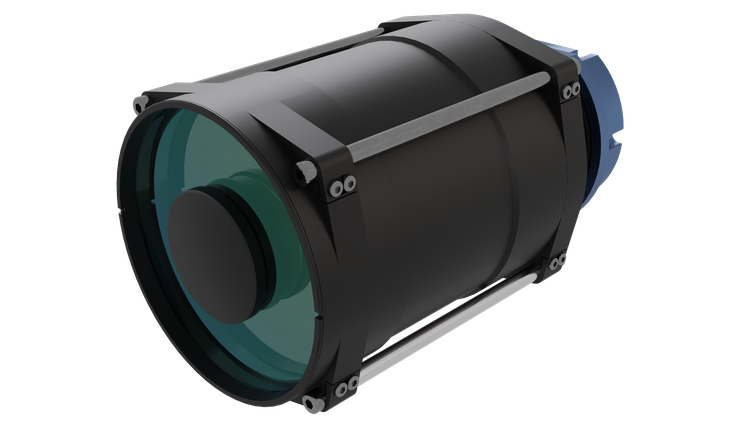

iSIM-SWIR is the latest development of the iSIM family. It is an innovative VNIR & SWIR camera that operates in the spectral range of 450-1700nm, while taking full advantage of the iSIM-170 optomechanical design and requiring no cryogenic cooling system.

This payload includes the optical front-end, with one channel assigned to VNIR and the other channel to SWIR. The electronics includes State-of-the-Art CMOS and InGaAs matrix detectors, in the VNIR and SWIR ranges respectively, as well as the corresponding electronics for payload management and control.

With a total mass of 15kg, iSIM-SWIR can achieve a resolution of < 2,5m in the SWIR range. The Super Resolution algorithm developed by SATLANTIS can improve the spatial resolution by a factor of at least 2.5 and match the GSD to the instrument's GRD.

Specfiications

Component Type
Camera/Imager
Form Factor
SmallSat
Heritage
N/A
Dry Mass
15.0 kg
Average Power
N/A
Status
In Production
