PowerDrive

Name: PowerDrive
Brand: TakeMe2Space

Vendor profile

Overview

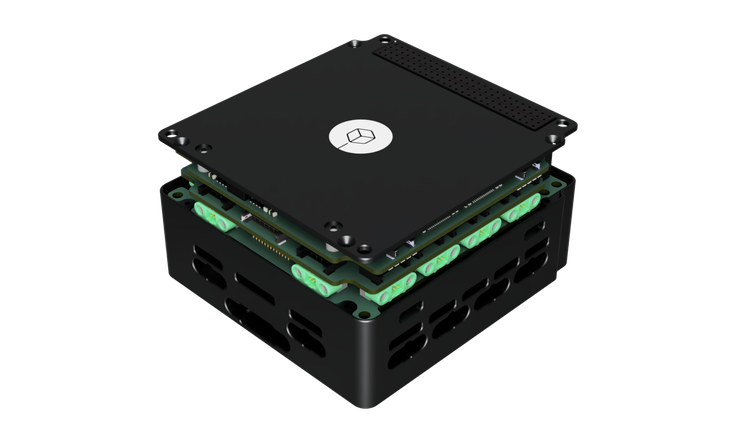

PowerDrive is an Electrical Power System (EPS) designed for use in 2U to 16 U cubesats. PowerDrive integrates the solar power conditioning and power distribution into a compact PC104 compliant aluminium enclosure, complete with proprietary Ta-based radiation shielding tape.

Looking for more information or want to purchase?

Contact now

Overview

Name: PowerDrive
Vendor: TakeMe2Space
Subsystem: Power Subsystem
Component Type: EPS/PCDU
Form Factor: CubeSat
Heritage: N/A
Average Cost: $4,300 to $4,800 USD
Average Lead Time: 1 to 3 months

Details

Input Channels (independent): 3x MPPT
Input Voltage: 6-35 V
Interfaces: CAN, RS-485
Power Distribution: 3x 5V buck converters (configurable 3.3 to 12 V); 2x 12V buck converters (configurable 3.3 to 12V); 1x 12V buck-boost (configurable 3.3 to 24V); 2x V_raw voltage (PC104)
Processor: Single core 32-bit Arm Cortex-M33 MCU

Vendor Details

Name: TakeMe2Space
Website: https://tm2.space/
Founded: 2024
Summary: TakeMe2Space is building in-orbit data centres to meet the soaring demand for AI compute. Space offers a sustainable and economic solution for this need. Our proprietary radiation shielding material lowers the cost of in-space compute by allowing terrestrial components in satellites. Global users can access these satellites via our space apps, OrbitLab and OrbitView, to run algorithms, use sensors, and control satellite orientation. Our indigenously designed and developed satellite hardware was proven on ISRO's PSLV C-60 through our mission, MOI-TD. We offer our compute and other subsystems developed along the way to the space community including satellite builders and Assembly-Integration-Test (AIT) companies.
