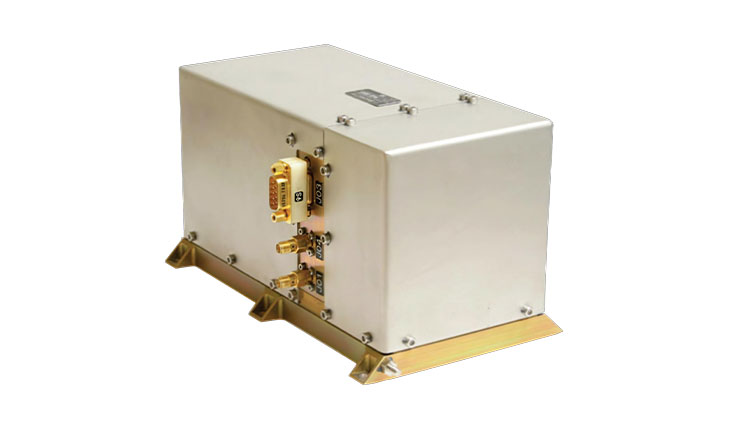

Rubidium Atomic Frequency Standard

Overview

The RAFS (Rubidium Atomic Frequency Standard) is a space-qualified radiation hard high-performance 10.00 MHz frequency standard based on the atomic reference given by the spectral absorption line of the Rb87 isotope. This product is the result of long-term cooperation between AIRBUS DS and SpectraTime. It has been designed and qualified according to ESA standards and was first flown on GIOVE-A with successful operation since 2005. The current baseline includes a thermal baseplate to improve the frequency stability and an integrated DC/ DC converter allowing the clock to be powered directly from the primary satellite bus (< 50 V). Tailoring with respect to mass, power, performance and environment aspects is possible according to customer needs. This clock was developed specifically for satellite navigation systems within the Galileo programme but could also be incorporated in high-performance space communications systems or scientific instruments.


Optionally the RAFS can be delivered with a Clock Monitoring and Control Unit (CMCU) to form a complete timing subsystem.

Specifications

Subsystem
CDH Subsystem
Component Type
Atomic Clock
Form Factor
SmallSat
Vendor
Airbus
Dry Mass
3.3 kg
Average Power
30.0 W
Heritage
Yes
Status
In Production
